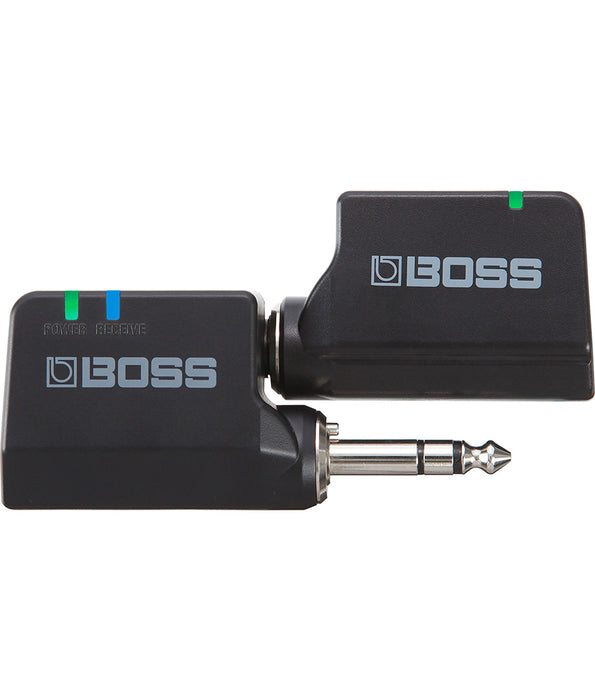

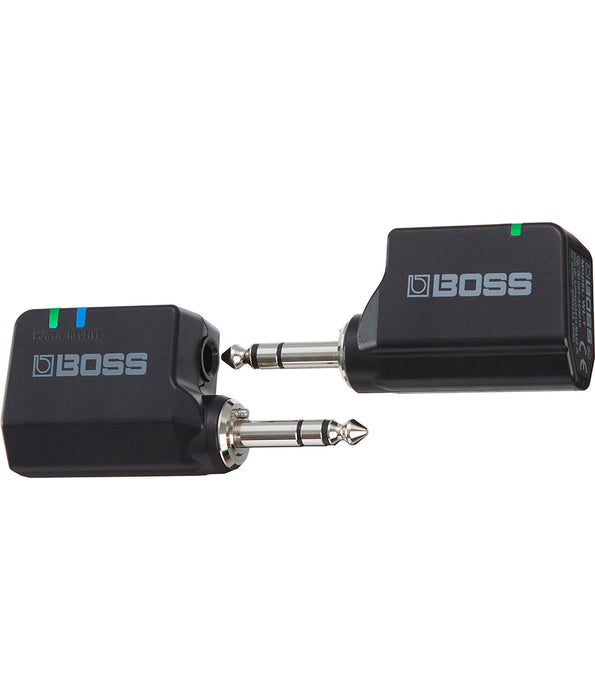

Boss WL-20 Digital Wireless Guitar System with Cable Tone Simulation

The Boss WL-20 Digital Wireless Guitar System with Cable Tone Simulation gives you wireless independence. You'll never go back to using a standard cable again! With no worries about cable management, you're able to move about freely while playing at home, jamming with friends, and performing on stage. During sound check at a gig, you can listen to your tone out front and dial in the best sound for your audience. And with the ability to roam and interact with other musicians, your live shows will be more dynamic and entertaining than ever.


SPECIFICATIONS (RECEIVER):
Wireless Format: BOSS proprietary digital audio format
Wireless carrier frequency: 2.4 GHz
Compatible Channels: 14 (May vary due to local conditions)
Transmission Range: 50 feet line-of-sight (May vary due to local conditions)
Latency: 2.3 ms
Dynamic Range: 110 dB or greater
Frequency Response: 20 Hz--20 kHz
Nominal Output Level: -10 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater

Indicators:
POWER
RECEIVE

Connectors:
Output plug: 1/4-inch TRS phone type
TRANSMITTER jack: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type

Power Supply:
Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port

Current Draw:
During wireless operation: 60 mA
While charging: 500mA

Battery charging time:
Charging only the receiver: Approximately 3 hours
Charging simultaneously with the transmitter: Approximately 4 hours

Expected battery life under continuous use:
Approximately 10 hours
* These figures will vary depending on the actual conditions of use.

INCLDUED ACCESSORIES:
Owner's Manual
Leaflet USING THE UNIT SAFELY
Transmitter
Micro USB cable for charging (*1)
*1: Use a standard USB AC adaptor (5 V/over 0.5 A) for charging.

SIZE AND WEIGHT(RECEIVER):
Width: 87 mm, 3-7/16 inches
Depth: 25 mm, 1 inches
Height: 38 mm, 1-1/2 inches
Weight: 60 g, 3 oz

SPECIFICATIONS (TRANSMITTER (WL-T)):
Nominal Input Level: -10 dBu (1 M ohm)
Indicator: BATTERY

Connectors:
Input plug: 1/4-inch TRS phone type
DC IN 5 V port: USB Micro-B type

Power Supply:
Rechargeable lithium-ion battery
Supplied from the DC IN 5 V port

Current Draw: 350mA

Battery charging time: Approximately 3 hours

Expected battery life under continuous use:
Approximately 12 hours
* These figures will vary depending on the actual conditions of use.

SIZE AND WEIGHT (TRANSMITTER (WL-T)):
Width: 87 mm, 3-7/16 inches
Depth: 22 mm, 7/8 inches
Height: 36 mm, 1-7/16 inches
Weight: 43 g, 2 oz
