Pre-Owned Boss RE-202 Space Echo Digital Delay Pedal

The Roland RE-201 Space Echo, first introduced in 1974, stands among the most legendary and sought-after effect units ever produced. This tape-based classic remained in production for over 14 straight years, and its distinctive rhythmic echo sounds, warm character, and highly playable sonic quirks still inspire musicians, producers, and audio mixers over four decades on.

The RE-202 faithfully delivers the authentic sound and behavior of the Space Echo like never before. Built by the company that designed the original, this advanced pedal captures the RE-201's magic in flawless detail, from the magnetic tape and motor properties to the vibrant spring reverb and colorful preamp circuit. And to take things even further, we've expanded the vintage Space Echo experience with lots of new features tuned for today's music.


• Authentically recreates the sound and behavior of the legendary Roland RE-201 Space Echo
• Classic multi-head tape echo sound with expanded delay time
• Original three-head configuration plus additional tape head for 12 unique echo combinations
• Independent stereo reverb section with original spring reverb type plus hall, plate, room, and ambience
• Saturation control for adding magnetic tape compression and preamp coloration
• Wow & Flutter control for introducing varying levels of natural tape modulation
• Choose between new and aged tape conditions
• Selectable input modes for optimum performance with instruments and line-level gear
• Warp and Twist effects with footswitch control
• Select between the unprocessed analog dry signal or the modeled sound of the original Space Echo preamp
• Four onboard memories plus the current panel settings
• Save and select 127 memories via external MIDI program change
• Tap tempo and carryover functions
• True stereo input and output
• Expandable control via external footswitches, an expression pedal, or MIDI

SIZE AND WEIGHT:
Width: 192 mm, 7-9/16 inches
Depth133 mm, 5-15/64 inches
Height52 mm, 2-3/64 inches
Height (including rubber foot)53 mm, 2-3/32 inches
Weight: 860 g, 1 lb 15 oz

SAMPLING FREQUENCY: 48 kHzAD

CONVERSION:
24 bits + AF method
AF method (Adaptive Focus method)
This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD converter.

DA Conversion: 32 bits
PROCESSING: 32-bit floating point
MODES: 12 modes
MEMORY: 127 + Manual
Nominal Input Level: INPUT A/MONO, INPUT B: -10 dBu
Maximum Input Level: INPUT A/MONO, INPUT B: +7 dBu
Input Impedance: INPUT A/MONO, INPUT B: 1 M ohm
Nominal Output Level: OUTPUT A/MONO, OUTPUT B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, OUTPUT B: +7 dBu
Output Impedance: OUTPUT A/MONO, OUTPUT B: 1 k ohm
Recommended Load Impedance: OUTPUT A/MONO, OUTPUT B: 10 k ohms or greater
Bypass: Buffered bypass

CONTROLS:
ON/OFF switch
MEMORY switch
TAP switch
SATURATION knob
WOW & FLUTTER knob
MODE SELECTOR knob
BASS knob
TREBLE knob
REVERB VOL knob
REPEAT RATE knob
INTENSITY knob
ECHO VOL knob
MEMORY button
INPUT button
TAPE button

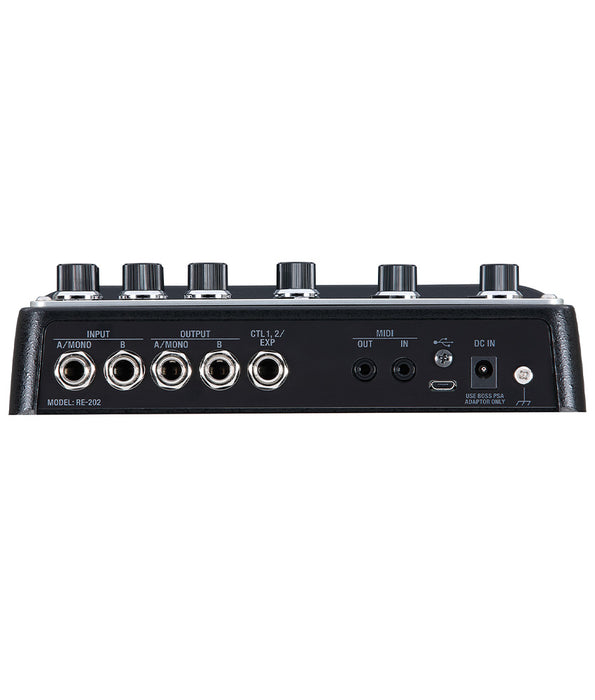

CONNECTORS:
INPUT A/MONO jack, INTPUT B jack, OUTPUT A/MONO jack, OUTPUT B jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type
MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

Power Supply: AC adaptor
Current Draw: 140 mA

IINCLUDED ACCESSORIES:
AC adaptor
Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Rubber foot

*Pre-Owned items are sold as-is, sale is final*
