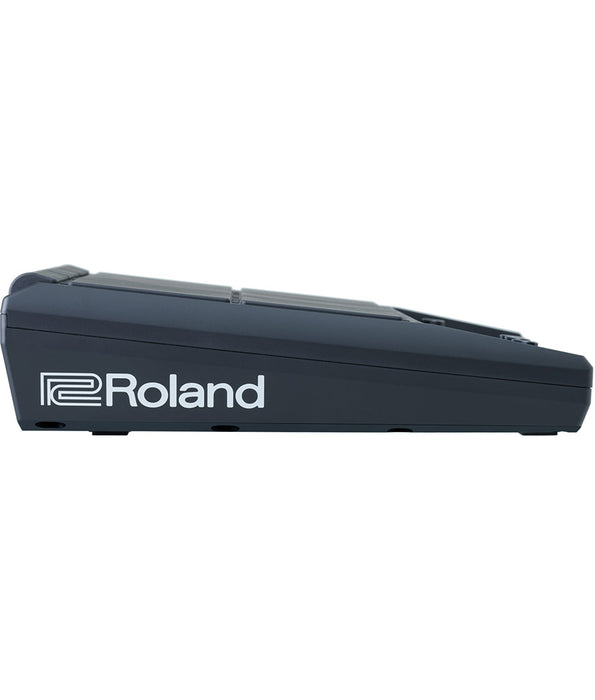

Roland SPD-SX PRO Professional Sampling Pad

by Roland
Original price $1,199.99 - Original price $1,199.99
Original price $1,199.99
$1,199.99 - $1,199.99
Current price $1,199.99

The SPD-SX PRO is a top-tier, ultimate sampling pad for the most demanding gigs. Harnessing the advanced sample pad technology of its predecessors, the SPD-SX PRO boasts an array of requested professional enhancements and is built for life on the road. Illuminate dark stages with a large color display and customizable multi-color trigger lights. Expand your performance setup with more audio outputs, additional trigger inputs, and hi-hat and FX expression pedal control. And go further with a massive 32 GB memory, 48 kHz audio playback, increased pad sensitivity without crosstalk, and a dedicated SPD-SX PRO App for easier kit editing.

Pads: Built-in pads: 9 (with PAD LED, Vertical LED)
* Four external trigger inputs are provided, allowing you to connect up to eight pads with Y cable.
Maximum Polyphony: 32 voices (included click voices)
Number of Recordable Wave Data: 20,000
*Including preload data
Internal storage: Size: 32 GB
*Including preload data
Sampling Time: Sampling from AUDIO IN : 60 minutes per sample
Resampling : 10 minutes per sample
Data Format: 16-bit linear
Sampling Frequency: 48 kHz
Import Format: WAV, AIFF, MP3Kits200Preload wave
Factory preloaded samples: 1,550 or more
Setlist: 32 (32 steps per SET LIST)

Kit Effects:
Layer Equalizer : each pad (Layer A/B independently)
Layer Transient : each pad (Layer A/B independently)
Multi-Effects (53 types) : 4 systems
Side Chain Compressor : 1 system

System Effects:
Master Effects (53 types)
Master Compressor
Master Equalizer

Number of USB Audio Record/Playback Channels:
Sampling Rate (Original): 48 kHz
Sampling Rate (with Sampling rate converter): 96 kHz, 44.1 kHz
Record: 8 channels
Playback: 12 channels

Display: Graphic color LCD 4.3 inch

PHONES jack : Stereo 1/4-inch phone type
MASTER OUT (L, R)jacks (BALANCED) : 1/4-inch TRS phone type
DIRECT OUT jack x 4 (BALANCED) : 1/4-inch TRS phone type
AUDIO IN jack : Stereo 1/4-inch phone type (with Volume control)
TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) : 1/4-inch TRS phone type
FOOT SW jack x 1 (1/2) : 1/4-inch TRS phone type
HH CTRL/EXPRESSION jack x 1 : 1/4-inch TRS phone type
MIDI (IN, OUT/THRU) connectors
USB MEMORY port : USB A (High-Speed USB, Backup Save/Load, Sample Import/Export)
DC IN jack

Power Supply: DC 12V (AC Adaptor)Current Draw1,500 mA

Quick Start
Leaflet "Read Me First"
AC Adaptor

Options (sold separately):
Pads (PD series, PDX series, BT-1)
Cymbals (CY series)
Hi-Hat (VH-10, VH-11)
Kick Triggers (KD series, KT series)
Pad Stand (PDS-20, PDS-10)
All-Purpose Clamp (APC-33)
Acoustic Drum Trigger (RT-30K, RT-30HR, RT-30H)
Hi-Hat Pedal(FD-8, FD-9, VH-10, HV-11)
Expression Pedal(BOSS EV-30)
Pedal Switch(DP-2)
Foot Switch (BOSS FS-5U, FS-6, FS-7)
Y cable (PCS-31L)
USB Flash Memory

Width: 360 mm, 14-3/16 inches
Depth: 330.3 mm, 13-1/16 inches
Height: 92.9 mm, 3-11/16 inches
Weight: 3.0 kg, 6 lbs 10 oz
