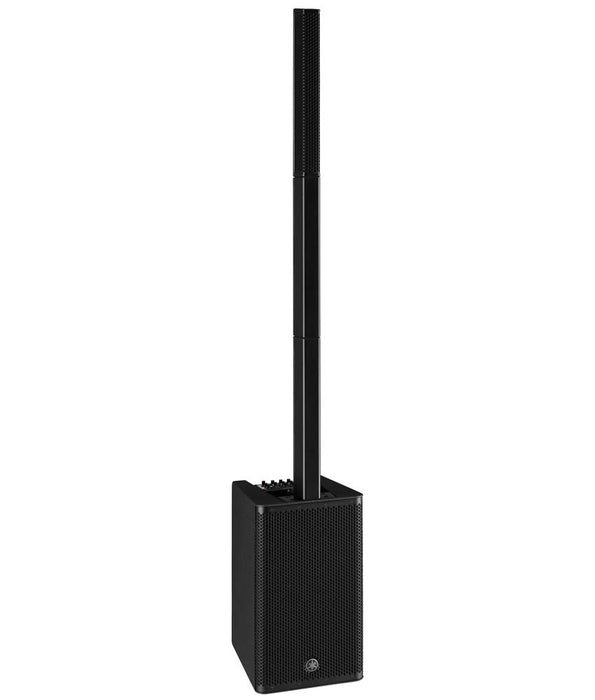

Yamaha STAGEPAS 1K mkII Portable PA System - 1100W
Yamaha STAGEPAS 1K mkII Portable PA System - 1100W
The STAGEPAS 1K mkII is an all-in-one portable PA system that allows you to quickly and easily transform any location into your stage, delivering professional-level audio performance with a simple setup that enables aspiring artists to focus on their music and get the most out of their performances. Adding an even higher sound pressure level and more flexible remote functionality than its predecessor, the second-generation STAGEPAS 1K mkII boasts the same combination of lightweight cabinet design, professional mixing functions, and simple operability, that has elevated the STAGEPAS all-in-one package above all other portable PAs. By adopting a concert-quality mixer and speaker, we have raised the bar for portable PA by utilizing our unique experience and know-how developed over decades of producing innovative, professional audio equipment from every stage of music engineering and production.
SPECIFICATIONS:
TYPE: Powered subwoofer with a line array speaker
MIXING CHANNELS: 5 (Mono x3 + Stereo x1)
INPUT CHANNEL FUNCTIONS: Hi-Z: CH2/3, 1-knob EQ: CH1-3/ST
OUTPUT CHANNEL FUNCTIONS: MODE (SPEECH/MUSIC/CLUB)
INPUTS: Mono x3 (mic/line) + Stereo x1 (line) / Mono x2 (line), Link in x1
OUTPUTS: Link out x1, Monitior out x1
BLUETOOTH: Bluetooth Ver.5.0, A2DP (SBC, AAC)
CONTROL AND OTHERS: Reverb foot switch, STAGEPAS Controller (iOS/Android app)
ONBOARD PROCESSORS: DSP - SPX digital reverb (4 program, parameter control)
SPEAKER TYPE: Powered subwoofer: Bass-reflex type, Line array speaker: Enclosed
FREQUENCY RANGE (-10dB): 37 Hz - 20 kHz
COVERAGE AREA: H170ﾟ x V30ﾟ
CROSSOVER: 240 Hz
MAXIMUM OUTPUT LEVEL (1m; on axis): 125 dB SPL
COMPONENT LF: Powered subwoofer: 12" (30 cm) Cone
COMPONENT HF: Line array speaker: 1.5" (3.8 cm) Cone x 10
AMPLIFIER CLASS: Class-D
POWER RATING : Dynamic - 1100 W
POWER CONSUMPTION: 25 W (Idle), 91 W (1/8 power)
POWER REQUIREMENTS: Depending on area of purchase: 100 V 50 Hz/60 Hz, 110-120 V 60 Hz, 220 V-240 V 50 Hz/60 Hz
HANDLE: Top of powered subwoofer x1

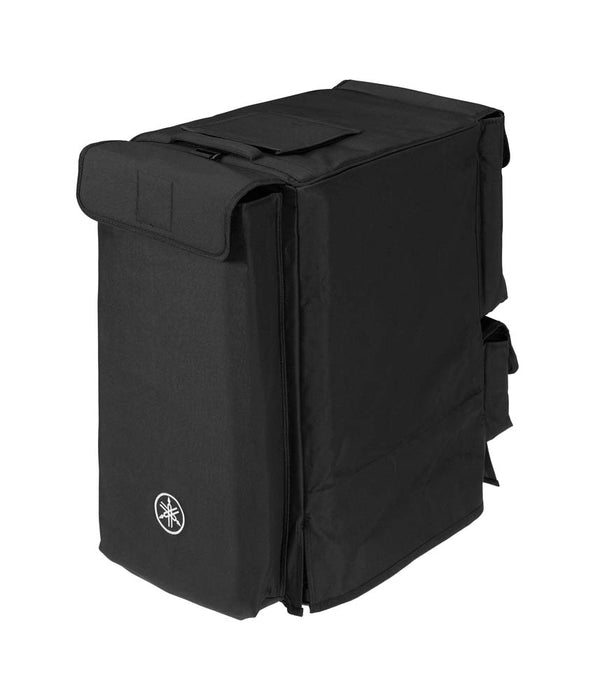

ACCESSORIES: Power cord x 1, Cover x 1
DIMENSIONS (W x H x D):
System: 334 x 2,000 x 418 mm (maximum), Line array speaker: 67 x 582 x 86 mm, Powered subwoofer: 334 x 550 x 418 mm, Spacer: 67 x 555 x 86 mm (each)
WEIGHT: System: 23.0 kg (maximum), Line array speaker: 1.8 kg, Powered subwoofer: 20.0 kg, Spacer: 0.6 kg (each)
