Dunlop MXR Sugar Drive Pedal

by Dunlop
SKU M294
Call for availability
Original price $129.99 - Original price $129.99
Original price
$129.99
$129.99 - $129.99
Current price $129.99

Based on a rare and elusive circuit, the MXR Sugar Drive Pedal provides a diverse range of clear and transparent overdrive tones, from sauced up boosting to blown-tube distortion.

This pedal can be powered by a Dunlop ECB003 9-volt adapter, or the DC Brick, Iso-Brick, and Mini Iso-Brick power supplies (not included).

VOLUME knob sets overall effect volume
TONE knob rolls off high frequencies
DRIVE knob sets the amount of overdrive

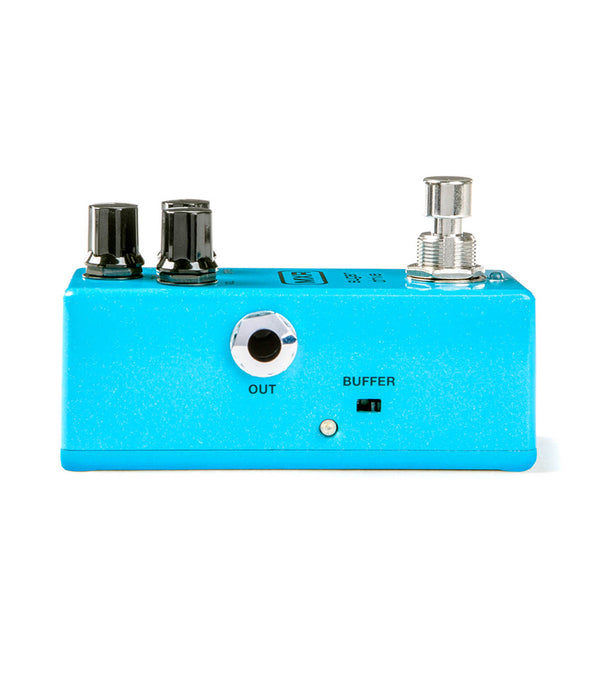

BUFFER switch selects buffered bypass (indicated by blue LED)
FOOTSWITCH toggles effect on/bypass (blue LED indicates on)

SPECIFICATIONS:
Input Impedance: 600 kΩ
Output Impedance: 3 kΩ
Nominal Input Level: +6 dBV
Maximum Output Level True Bypass without Buffer selected: +26 dBV
Tone control (@ full CCW): -20 dB @ 3 kHz
Current Draw: 18.5 mA @ 9 VDC
Power Requirements: 9 VDC (ECB003 AC adapter)
Throughput Gain: up to +50 dB @ 1kHz
