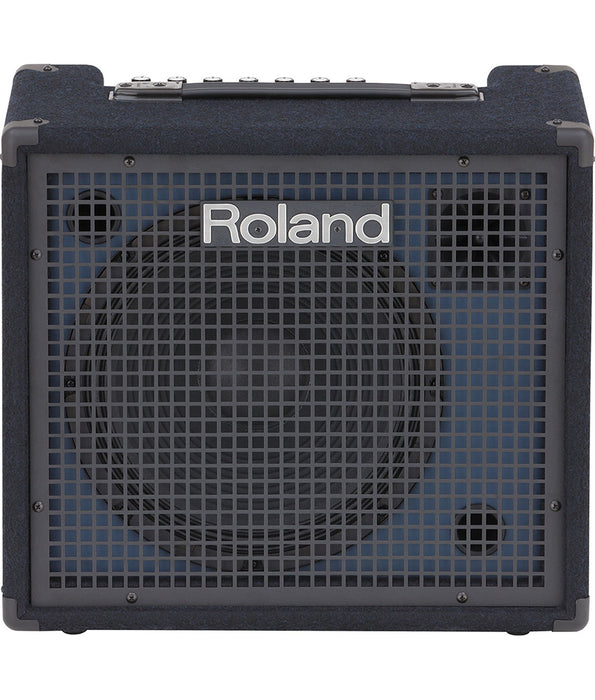

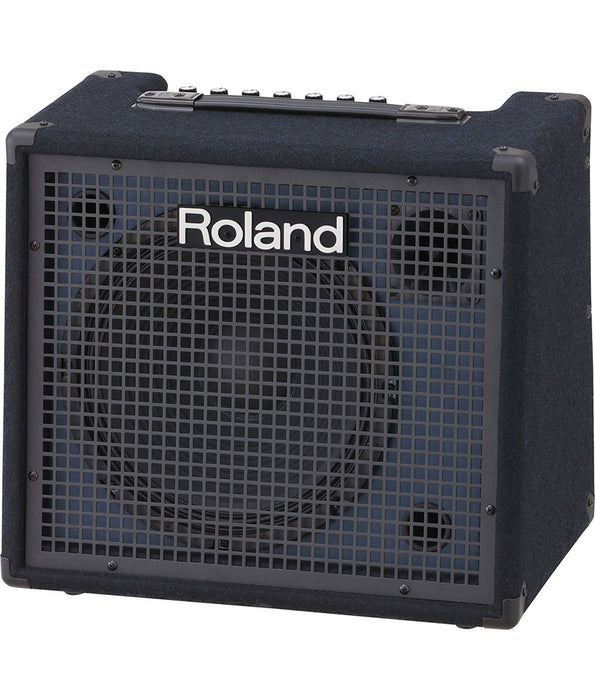

Roland KC-200 12" 100 Watt Keyboard Amplifier
Roland KC-200 12" 100 Watt Keyboard Amplifier
The KC-200 is a compact and affordable keyboard amp that features 100 watts of power and an integrated mixer with four line input channels, a dedicated aux input, and support for an XLR vocal mic. In addition, the 12-inch woofer has been upgraded for improved sound quality. On its own, the KC-200 delivers big sound in a highly mobile package. If desired, the low-end performance can be extended by driving a powered subwoofer from the amp's Sub Out jack.
• Compact and affordable keyboard amplifier with 100 watts of power
• Redesigned power amp and power supply sections provide increased stability and improved bass reproduction
• Custom two-way speaker system with newly developed 12-inch woofer and tweeter
• Onboard mixing with four 1/4-inch line input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
• Channel 4 provides dedicated monitor functionality for click and guide tracks
• XLR mic input, 1/4-inch line output, headphones output, and sub output
• Metal jacks for increased durability
SPECIFICATIONS:
Rated Power Output: 100 W
Nominal Input Level (1 kHz):
CH1 (XLR type, MIC/LINE): -50-- -20 dBu
CH2 (LINE): -20 dBu
CH3 (LINE): -20 dBu
CH4 (MONITOR): -20 dBu
AUX IN (L, R, STEREO): -10 dBu
Nominal Output Level (1 kHz):
LINE OUT: +4 dBu
SUB OUT: +4 dBu
Speakers:
30 cm (12 inches) Woofer x 1
Tweeter x 1

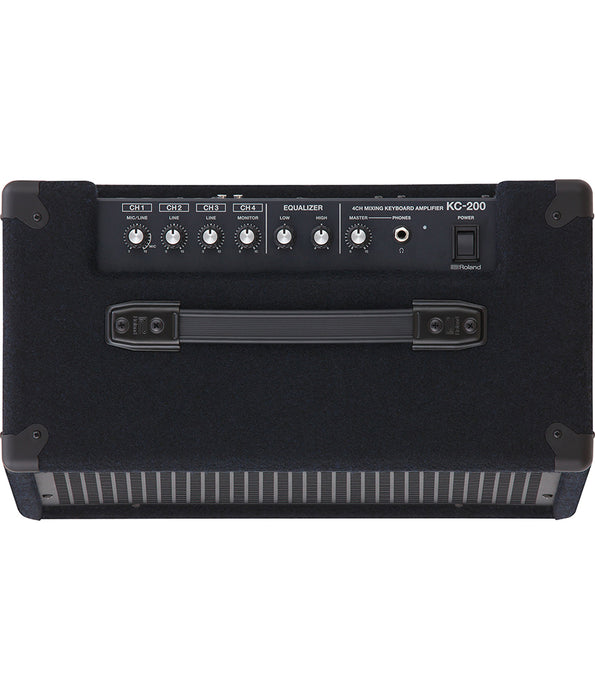

Controls:
POWER switch
[CH1]
MIC/LINE knob
[CH2]
LINE knob
[CH3]
LINE knob
[CH4]
MONITOR knob
[EQUALIZER]
LOW knob
HIGH knob
MASTER knob
Indicator: Power

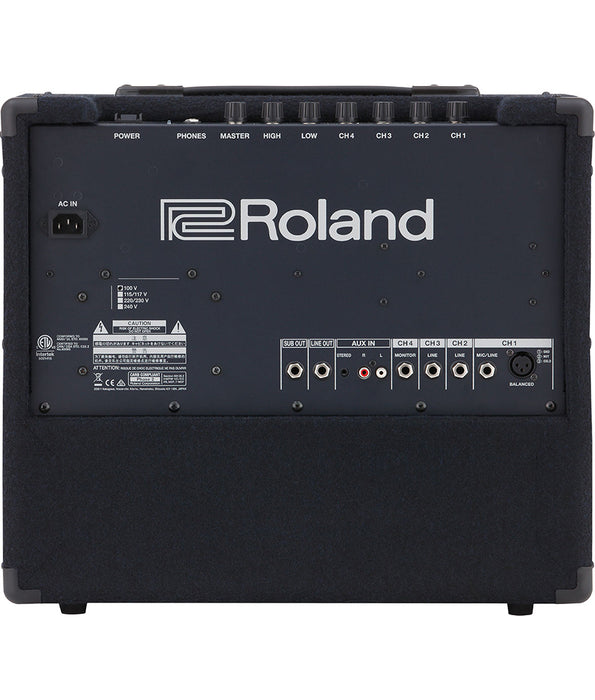

Connectors:
CH1 jack: XLR type
CH1 (MIC/LINE) jack: 1/4-inch phone type
CH2 (LINE) jack: 1/4-inch phone type
CH3 (LINE) jack: 1/4-inch phone type
CH4 (MONITOR) jack: 1/4-inch phone type
AUX IN (L, R) jacks: RCA phono type
AUX IN (STEREO) jacks: Stereo miniature phone type
LINE OUT jack: 1/4-inch phone type
SUB OUT jack: 1/4-inch phone type
PHONES jack: 1/4-inch TRS phone type (mono signal output)
Power Consumption: 70 W
INCLUDED ACCESSORIES: Owner's Manual
Option (sold separately): Speaker stand: ST-A95
SIZE AND WEIGHT:
Width: 480 mm, 18-15/16 inches
Depth: 295 mm, 11-5/8 inches
Height: 435 mm, 17-1/8 inches
Weight: 15 kg, 33 lbs 2 oz
