Roland KC-80 3-Channel Mixing Keyboard Amplifier

Roland KC-80 3-Channel Mixing Keyboard Amplifier

The 50-watt KC-80 is a miniature powerhouse with three line input channels, a dedicated aux input, and support for an XLR vocal mic. Compared to the previous-generation KC-60, the power section has been completely redesigned for higher output, better stability, and enhanced bass reproduction. In addition, the 10-inch woofer has been upgraded for improved sound quality. If desired, the low-end performance can be extended by driving a powered subwoofer from the KC-80's Sub Out jack.

• Compact and affordable keyboard amplifier with 50 watts of power
• Redesigned power amp and power supply sections provide increased stability and improved bass reproduction
• Custom two-way speaker system with newly developed 10-inch woofer and tweeter
• Onboard mixing with three 1/4-inch input channels, dedicated auxiliary input with 1/8-inch and RCA jacks, and master EQ
• XLR mic input, 1/4-inch line output, headphones output, and sub output
• Metal jacks for increased durability

SPECIFICATIONS:

RATED POWER OUTPUT: 50 W
NOMINAL INPUT LEVEL (1 kHz): CH1 (MIC/LINE): -50-- -20 dBu; CH2 (LINE): -20 dBu; CH3 (LINE): -20 dBu; AUX IN (L, R, STEREO): -10 dBu
NOMINAL OUTPUT LEVEL (1 kHz): LINE OUT:+4 dBu; SUB OUT:+4 dBu

SPEAKERS: 25 cm (10 inches) Woofer x 1; Tweeter x 1

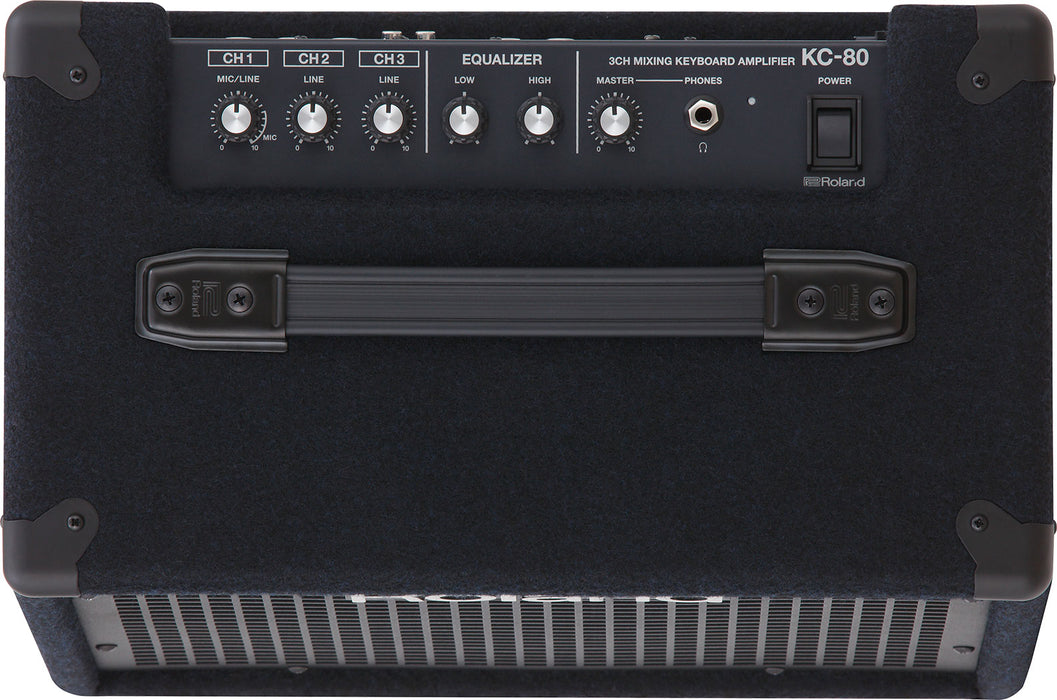

CONTROLS: POWER switch; [CH1] MIC/LINE knob; [CH2] LINE knob; [CH3] LINE knob; [EQUALIZER] LOW knob; HIGH knob; MASTER knob

INDICATOR: Power

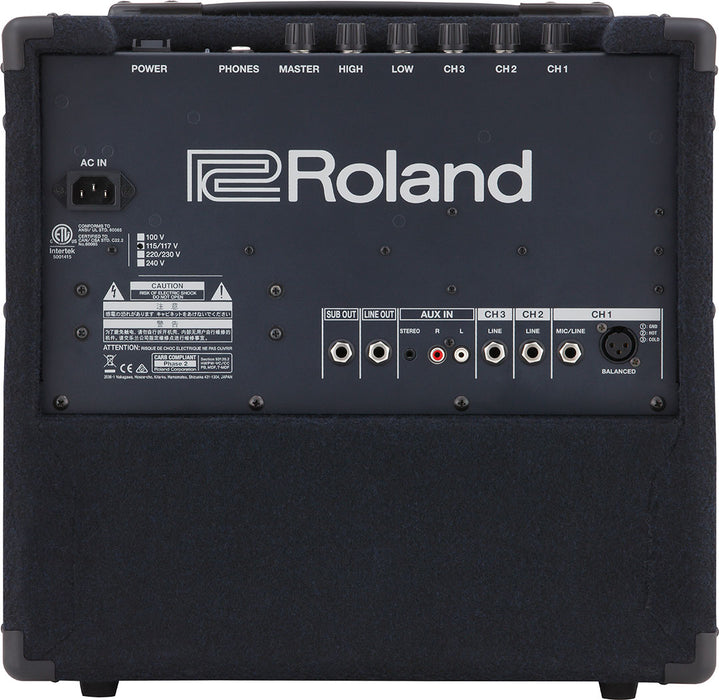

CONNECTORS: CH1 jack: XLR type; CH1 (MIC/LINE) jack: 1/4-inch phone type; CH2 (LINE) jack: 1/4-inch phone type; CH3 (LINE) jack: 1/4-inch phone type; AUX IN (L, R) jacks: RCA phono type; AUX IN (STEREO) jack: Stereo miniature phone type

LINE OUT jack: 1/4-inch phone type
SUB OUT jack: 1/4-inch phone type
PHONES jack: 1/4-inch TRS phone type (mono signal output)
POWER CONSUMPTION: 50 W
ACCESSORY: Owner's Manual
